IR to RS232 Codes Output Table for RCV-5000 Infrared Receiver

Celadon SC-45 Standard RCV-5000 ASCII Output

Celadon, Inc.
RCV5000 Output Table
Remote: SC-45


Data: 9600 Baud, 8, N, 1, ASCII Output
Standard Transmit and Receive pinout
RCV5000 Firmware: SC45_1.HEX

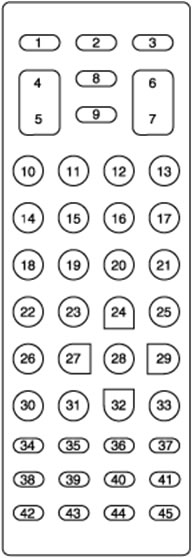

SC-45 Key Number	ASCII OUTPUT
1	1
2	2
3	3
4	4
5	5
6	6
7	7
8	8
9	9
10	10
11	11
12	12
13	13
14	14
15	15
16	16
17	17
18	18
19	19
20	20
21	21
22	22
23	23
24	24
25	25
26	26
27	27
28	28
29	29
30	30
31	31
32	32
33	33
34	34
35	35
36	36
37	37
38	38
39	39
40	40
41	41
42	42
43	43
44	44
45	45
